Mérettáblázat

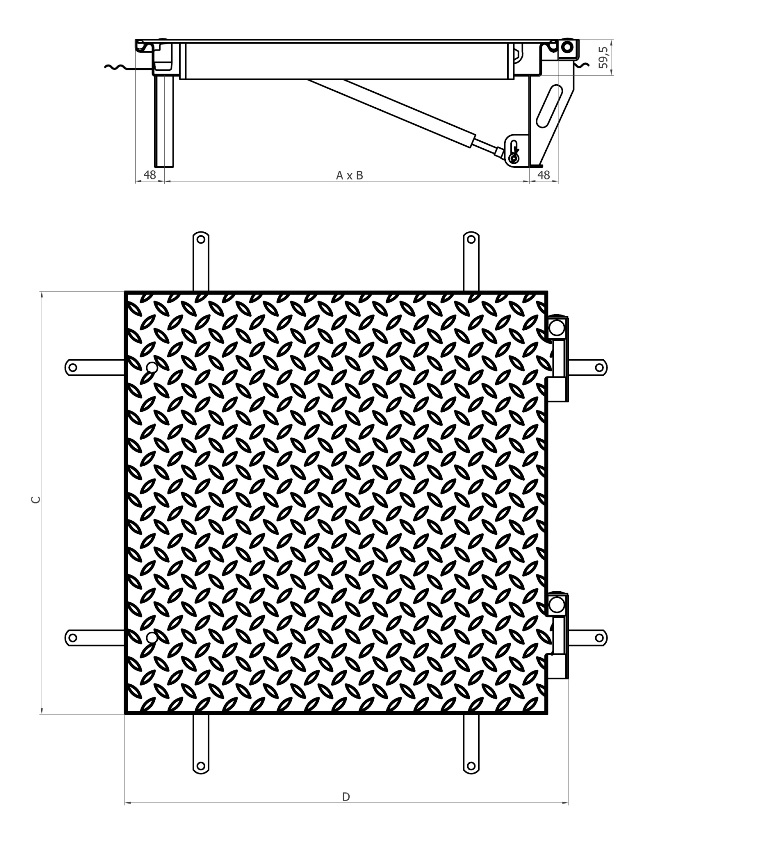

| Szabad nyílásméret (AxB) mm | Külső méretek (DxC) mm | Keret magassága (mm) | Teher- bírás | Súly (kg) | Cikkszám (GS) (1.0037) | Cikkszám (SS) (1.4301) | Letöltés GS SS | |
|---|---|---|---|---|---|---|---|---|
| 500x500 | 630x596 | 59,5 | A15 | 25,50 | 415205 | 415217 | dwg | dwg |
| 600x600 | 730x696 | 59,5 | A15 | 31,70 | 415206 | 415218 | dwg | dwg |
| 700x700 | 830x796 | 59,5 | A15 | 44,50 | 415207 | 415219 | dwg | dwg |
| 800x800 | 930x896 | 59,5 | A15 | 49,40 | 415208 | 415220 | dwg | dwg |
| 900x900 | 1030x996 | 59,5 | A15 | 56,10 | 415209 | 415221 | dwg | dwg |
| 1000x1000 | 1130x1096 | 59,5 | A15 | 69,00 | 415210 | 415222 | dwg | dwg |
| 500x500 | 630x596 | 59,5 | B125 | 32,80 | 415211 | 415223 | dwg | dwg |
| 600x600 | 730x696 | 59,5 | B125 | 39,60 | 415212 | 415224 | dwg | dwg |
| 700x700 | 830x796 | 59,5 | B125 | 53,40 | 415213 | 415225 | dwg | dwg |
| 800x800 | 930x896 | 59,5 | B125 | 68,50 | 415214 | 415226 | dwg | dwg |
| 900x900 | 1030x996 | 59,5 | B125 | 76,60 | 415215 | 415227 | dwg | dwg |
| 1000x1000 | 1130x1096 | 59,5 | B125 | 90,60 | 415216 | 415228 | dwg | dwg |
GS: horganyzott acél alapanyag
SS: rozsdamentes acél alapanyag
