Mérettáblázat

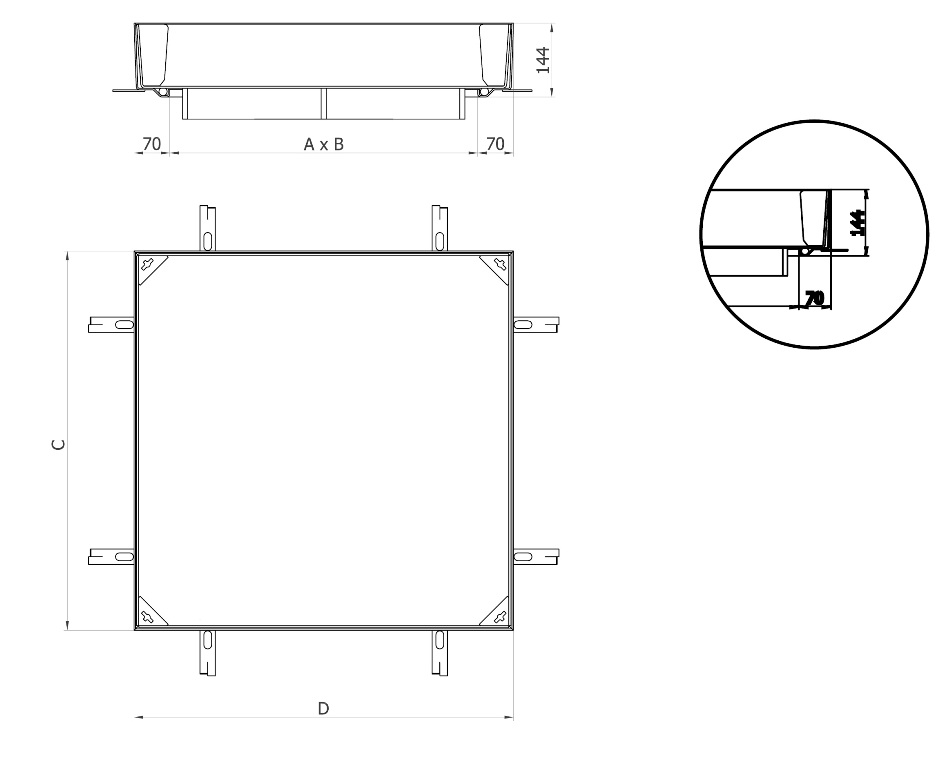

| Szabad nyílásméret (AxB) mm | Külső méretek (DxC) mm | Keret magassága (mm) | Fedlap mélysége (mm) | Teher- bírás | Súly (kg) | Cikkszám | Letöltés |
|---|---|---|---|---|---|---|---|
| 300x300 | 439x439 | 144 | 120 | B125 | 26,00 | 414487 | dwg |
| 400x400 | 539x539 | 144 | 120 | B125 | 35,70 | 414488 | dwg |
| 400x600 | 539x739 | 144 | 120 | B125 | 43,60 | 414538 | dwg |
| 500x500 | 639x639 | 144 | 120 | B125 | 44,00 | 414489 | dwg |
| 600x600 | 739x739 | 144 | 120 | B125 | 52,40 | 414490 | dwg |
| 600x1000 | 739x1139 | 144 | 120 | B125 | 82,00 | 414539 | dwg |
| 700x700 | 839x839 | 144 | 120 | B125 | 73,00 | 414491 | dwg |
| 800x800 | 939x939 | 144 | 120 | B125 | 83,5 | 414492 | dwg |
| 900x900 | 1039x1039 | 144 | 120 | B125 | 94,20 | 414493 | dwg |
| 1000x1000 | 1139x1139 | 144 | 120 | B125 | 05,90 | 414494 | dwg |
| 300x300 | 439x439 | 144 | 120 | C250 | 32,50 | 414495 | dwg |
| 400x400 | 539x539 | 144 | 120 | C250 | 51,10 | 414496 | dwg |
| 400x600 | 539x739 | 144 | 120 | C250 | 64,10 | 414540 | dwg |
| 500x500 | 639x639 | 144 | 120 | C250 | 66,50 | 414497 | dwg |
| 600x600 | 739x739 | 144 | 120 | C250 | 78,60 | 414498 | dwg |
| 600x1000 | 739x1139 | 144 | 120 | C250 | 114,50 | 414541 | dwg |
| 700x700 | 839x839 | 144 | 120 | C250 | 101,90 | 414499 | dwg |
| 800x800 | 939x939 | 144 | 120 | C250 | 116,30 | 414500 | dwg |
| 900x900 | 1039x1039 | 144 | 120 | C250 | 131,00 | 414501 | dwg |
| 1000x1000 | 1139x1139 | 144 | 120 | C250 | 147,00 | 414502 | dwg |
GS: horganyzott acél alapanyag
